Hangzhou Ocean Industry Co., Ltd. on üks juhtivaid leegiga lõigatud ketirataste tootjaid ja tarnijaid Hiinas. Tere tulemast meie tehasest Hiinas valmistatud vastupidavate tööstuskettide ja jõuülekande osade hulgimüügile. Kõik kohandatud tooted on kõrge kvaliteediga ja konkurentsivõimelise hinnaga.
Flame Cut Sprockets on leeklõiketehnoloogia abil toodetud ketirattad, millel on mitmeid eeliseid ja rakendusi. Leeklõiketehnoloogia kasutamine tagab täpse sammu ja ketiratta pika eluea. Need ketirattad on läbinud kõrgsagedusliku-karastuse, kõvadusega kuni HRC4050, mis näitab head kõvadust, kulumiskindlust ja pikka kasutusiga.
Vastavalt kliendi nõudmistele võivad leeklõigatud ketirattad pakkuda erinevat tüüpi, näiteks ilma rummuta, rummuta, viimistletud ava või kitseneva auguta. Lisaks saab kohandada vastavalt konkreetsetele rakendusnõuetele.
Nende ketirataste paksus on vahemikus 5/8 tolli kuni 4 tolli ning need on lihtsaks paigaldamiseks ja hooldamiseks mõeldud poolitatud struktuuriga. Mõned mudelid pakuvad ka eemaldatavaid ketirattaid, mis hõlbustavad hooldust ja vahetamist.
Need ketirattad sobivad erinevate kasutusstsenaariumide jaoks, nagu põllumajanduslikud rullketid, terasest eemaldatavad ketid ja pöördketid. Neid kasutatakse laialdaselt ülekandesüsteemides ja transpordikomponentides ning need on olulised ülekandekomponendid. Flame Cut ketirattaid on tööstusliku jõuülekande valdkonnas laialdaselt kasutatud tänu nende suurele täpsusele, pikale elueale ja laialdasele kasutatavusele. Olenemata sellest, kas tegemist on standardsete spetsifikatsioonide või kohandatud nõuetega, suudab see vastata erinevate klientide erinevatele vajadustele.
Parameeter
Tootevalik
| Standardid | Sarja tüüp | Suuruste vahemik |
| ANSI | 1654, PITCH-1,654" | 1654C12-1654C60 |
| 2069, PITCH-2,609" | 2609C 08-2609C60 | |
| 3067, PITCH-3,067" | 3067C10-3067C48 | |
| 3075, PITCH-3,075" | B3075C07-B3075C18 | |
| A3075, PITCH-3,075" | A3075C08-A3075C60 | |
| 3500, PITCH-3,500" | 3500C10-3500C48 | |
| 4000, PITCH-4,000" | 4000C06-4000C16 | |
| 4063, PITCH-4,063" | 4063C06-4063C48 | |
| 4500, PITCH-4.500" | 4500C10-4500C48 | |
| 5000, PITCH-5,000" | 5000C10-5000048 | |
| 6050, PITCH-6,500" | 6050C06-6050C12 |

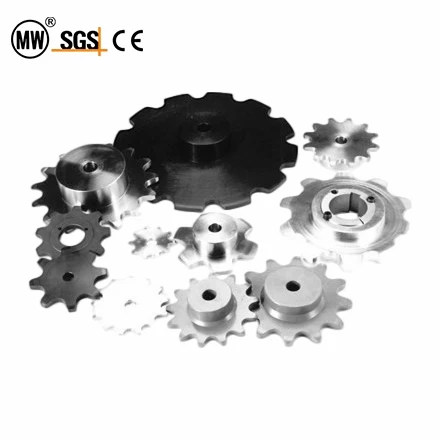

Leegilõikega ketirattad
1.654 Leegiga lõigatud ketirattad kettidele
62cast-062-62Teras-62A-HF62A-62H-072-162-R362
R432-RR432-962-LXS627-IS620-162R-US622-378R
402RS-US620
1654 plaadi paksus 3/4'' Rulli läbimõõt 13/16''

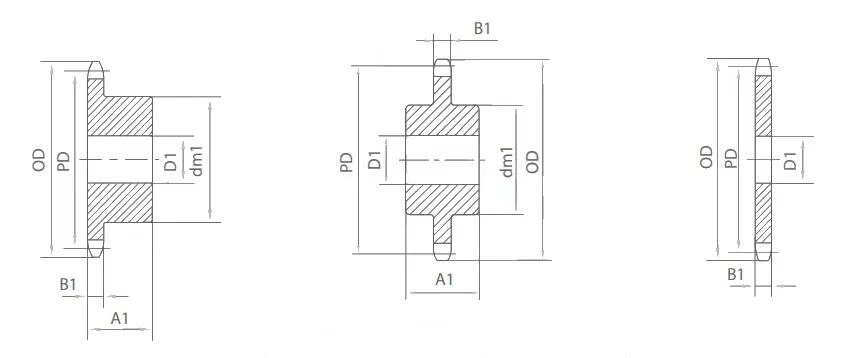

| Kataloogi nr. | Z | P.D | Varu puu | Max Bore | Rummu läbimõõt | A1 | kaal naela | Kataloogi nr. | Varu puu | kaal naela |
| 1654C12 | 12 | 6.39 | 15/16 | 23/4 | 41/4 | 31/8 | 15.8 | 1654A12 | 15/16 | 6.8 |
| 1654C13 | 13 | 6.91 | 15/16 | 31/4 | 43/4 | 31/2 | 19.4 | 1654A13 | 15/16 | 8.0 |
| 1654C14 | 14 | 7.43 | 15/16 | 31/4 | 43/4 | 31/2 | 20.6 | 1654A14 | 15/16 | 9.2 |
| 1654C15 | 15 | 7.96 | 15/16 | 31/4 | 43/4 | 31/2 | 22.0 | 1654A15 | 15/16 | 10.5 |
| 1654C17 | 17 | 9.00 | 15/16 | 31/4 | 43/4 | 31/2 | 24.0 | 1654A17 | 15/16 | 12.0 |
| 1654C19 | 19 | 10.05 | 15/16 | 31/4 | 43/4 | 31/2 | 28.0 | 1654A19 | 15/16 | 16.8 |
| 1654C20 | 20 | 10.57 | 15/16 | 31/4 | 43/4 | 31/2 | 30.0 | 1654A20 | 15/16 | 18.6 |
| 1654C24 | 24 | 12.67 | 11/4 | 33/4 | 51/2 | 43/5 | 49.0 | 1654A24 | 11/4 | 26.0 |
| 1654C26 | 26 | 13.72 | 11/4 | 33/4 | 51/2 | 43/8 | 53.0 | 1654A26 | 11/4 | 30.0 |
| 1654C30 | 30 | 15.82 | 11/4 | 33/4 | 51/2 | 43/8 | 65.0 | 1654A30 | 11/4 | 42.0 |
| 1654C36 | 36 | 18.98 | 11/4 | 33/4 | 51/2 | 43/8 | 82.0 | 1654A36 | 11/4 | 59.0 |
| 1654C54 | 54 | 28.45 | 11/4 | 33/4 | 51/2 | 43/8 | 125.0 | 1654A54 | 11/4 | 135.0 |
| 1654C60 | 60 | 31.60 | 11/4 | 33/4 | 51/2 | 43/8 | 138.0 | 1654A60 | 11/4 | 169 |
Leegilõikega ketirattad
3067 Leegiga lõigatud ketirattad kettidele
AX1568-568-JS3011-SS568-XX568-1803A-1803AB-MXS3011
IS3011-IS301-US3011-LXS3011-LXS3011M
3067 plaadi paksus 11/4'' Rulli läbimõõt 15/8''
| Kataloogi nr. | Z | P.D | Varu puu | Max Hub | Rummu läbimõõt | A1 | wtLbs | Kataloogi nr. | Varu puu | kaal naela |
| 3067C10 | 10 | 9.92 | 11/2 | 33/4 | 51/2 | 41/4 | 46 | 3067A10 | 11/2 | 28 |
| 3067C12 | 12 | 11.85 | 11/2 | 33/4 | 51/2 | 41/4 | 58 | 3067A12 | 11/2 | 40 |
| 3067C14 | 14 | 13.78 | 11/2 | 33/4 | 51/2 | 41/4 | 73 | 3067A14 | 11/2 | 53 |
| 3067C30 | 30 | 29.34 | 11/2 | 41/2 | 61/2 | 53/4 | 217 | 3067A30 | 11/2 | 240 |
| 3067C36 | 36 | 35.19 | 11/2 | 53/8 | 71/2 | 57/8 | 257 | 3067A36 | 11/2 | 290 |
| 3067C42 | 42 | 41.04 | 11/2 | 51/2 | 8 | 61/8 | 407 | 3067A42 | 11/2 | 340 |
| 3067C48 | 48 | 46.89 | 11/2 | 51/2 | 8 | 61/8 | 448 | 3067A48 | 11/2 | 381 |
A3075 Leegiga lõigatud ketirattad kettidele
1030-R1033-R1035-1037-1539-SS40-LXS1031-AP13-LX1032
SS40Hyp-IS1030-IS1031-IS1032-IS1037-US1031-1190-1190
US1032
A3075 plaadi paksus 11/4'' Rulli läbimõõt 11/4''
| Kataloogi nr. | Z | P.D | Varu puu | Max Bore | Rummu läbimõõt | A1 | kaal naela | Kataloogi nr. | Varu puu | kaal naela | |
| A3075C08 | 8 | 8.05 | 11/4 | 31/4 | 5 | 37/8 | 31 | A3075A08 | 11/4 | 17.9 | |
| A3075C09 | 9 | 8.99 | 11/4 | 31/4 | 5 | 37/8 | 36 | A3075A09 | 11/4 | 22.4 | |
| A3075C10 | 10 | 9.95 | 11/4 | 31/4 | 5 | 37/8 | 40 | A3075A10 | 11/4 | 28 | |
| A3075C11 | 11 | 10.91 | 11/2 | 33/4 | 51/2 | 41/4 | 51 | A3075A11 | 11/2 | 33 | |
| A3075C12 | 12 | 11.88 | 11/2 | 33/4 | 51/2 | 41/4 | 57 | A3075A12 | 11/2 | 39 | |
| A3075C13 | 13 | 12.85 | 11/2 | 33/4 | 51/2 | 41/4 | 64 | A3075A13 | 11/2 | 46 | |
| A3075C15 | 15 | 14.79 | 11/2 | 4 | 6 | 51/8 | 91 | A3075A15 | 11/2 | 60 | |
| A3075C17 | 17 | 16.73 | 11/2 | 4 | 6 | 51/8 | 109 | A3075A17 | 11/2 | 78 | |
| A3075C19 | 19 | 18.68 | 11/2 | 41/2 | 61/2 | 53/4 | 137 | A3075A19 | 11/2 | 97 | |
| A3075C21 | 21 | 20.63 | 11/2 | 41/2 | 61/2 | 53/4 | 158 | A3075A21 | 11/2 | 118 | |
| A3075C24 | 24 | 23.56 | 11/2 | 41/2 | 61/2 | 53/4 | 176 | A3075A24 | 11/2 | 154 | |
| A3075C25 | 25 | 24.53 | 11/2 | 53/8 | 71/2 | 57/8 | 206 | A3075A25 | 11/2 | 167 | |
| A3075C28 | 28 | 27.46 | 11/2 | 53/8 | 71/2 | 57/8 | 236 | A3075A28 | 11/2 | 210 | |
| A3075C30 | 30 | 29.42 | 11/2 | 53/8 | 71/2 | 57/8 | 254 | A3075A30 | 11/2 | 240 | |
| A3075C35 | 35 | 34.30 | 11/2 | 51/2 | 8 | 61/8 | 313 | A3075A35 | 11/2 | 287 | |
| A3075C40 | 40 | 39.19 | 11/2 | 51/2 | 8 | 61/8 | 360 | A3075A40 | 11/2 | 327 | |
| A3075C42 | 42 | 41.15 | 11/2 | 51/2 | 8 | 61/8 | 410 | A3075A42 | 11/2 | 343 | |
| A3075C48 | 48 | 47.03 | 11/2 | 61/2 | 91/2 | 63/4 | 501 | A3075A48 | 11/2 | 384 | |
| A3075C54 | 54 | 52.89 | 11/2 | 61/2 | 91/2 | 63/4 | 549 | A3075A54 | 11/2 | 432 | |
| A3075C60 | 60 | 58.75 | 11/2 | 7 | 10 | 71/2 | 642 | A3075A60 | 11/2 | 506 | |
Leegilõikega ketirattad
3500 Leegiga lõigatud ketirattad kettidele
RX238-IS3514J-1616A-MXS3514-US3514-LXS3514-LXS3514M
3500 plaadi paksus 11/4'' Rulli läbimõõt 13/4''
| Kataloogi nr. | Z | P.D | Varu puu | Max Bore | Rummu läbimõõt | A1 | kaal naela | Kataloogi nr. | Varu puu | kaal naela |
| 3500C10 | 10 | 11.33 | 11/2 | 33/4 | 51/2 | 41/4 | 54 | 3500A10 | 11/2 | 35 |
| 3500C12 | 12 | 13.52 | 11/2 | 33/4 | 51/2 | 41/4 | 70 | 3500A12 | 11/2 | 51 |
| 3500C14 | 14 | 15.73 | 11/2 | 33/4 | 51/2 | 41/4 | 88 | 3500A14 | 11/2 | 60 |
| 3500C30 | 30 | 33.48 | 11/2 | 4 | 6 | 51/8 | 312 | 3500A30 | 11/2 | 253 |
| 3500C36 | 36 | 40.16 | 11/2 | 4 | 6 | 51/8 | 345 | 3500A36 | 11/2 | 270 |
| 3500C42 | 42 | 46.84 | 11/2 | 51/2 | 8 | 61/8 | 446 | 3500A42 | 11/2 | 379 |
| 3500C48 | 48 | 53.52 | 11/2 | 51/2 | 8 | 61/8 | 517 | 3500A48 | 11/2 | 450 |
4063 Leegiga lõigatud ketirattad kettidele
1240-1244-RC1245-R1248-SS124
LXS1245-SS124D-SS124DP-IS1242-IS1425
4063 plaadi paksus 13/4'' rulli läbimõõt 13/4''
| Kataloogi nr. | Z | P.D | Varu puu | Max Bore | Rummu läbimõõt | A1 | kaal naela | Kataloogi nr. | Varu puu | kaal naela |
| 4063C06 | 6 | 8.13 | 15/16 | 21/2 | 4 | 4 | 34 | 4063A06 | 15/16 | 26 |
| 4063C07 | 7 | 9.36 | 11/4 | 33/4 | 51/4 | 43/4 | 51 | 4063A07 | 11/4 | 34 |
| 4063C08 | 8 | 10.62 | 11/2 | 41/2 | 61/2 | 5 | 78 | 4063A08 | 11/2 | 44 |
| 4063C09 | 9 | 11.88 | 11/2 | 41/2 | 61/2 | 5 | 89 | 4063A09 | 11/2 | 55 |
| 4063C10 | 10 | 13.15 | 11/2 | 41/2 | 61/2 | 5 | 101 | 4063A10 | 11/2 | 67 |
| 4063C11 | 11 | 14.42 | 11/2 | 41/2 | 61/2 | 5 | 115 | 4063A11 | 11/2 | 81 |
| 4063C12 | 12 | 15.70 | 11/2 | 51/4 | 7 | 6 | 140 | 4063A12 | 11/2 | 96 |
| 4063C13 | 13 | 16.98 | 11/2 | 51/4 | 7 | 6 | 155 | 4063A13 | 11/2 | 111 |
| 4063C14 | 14 | 18.26 | 11/2 | 51/4 | 7 | 6 | 174 | 4063A14 | 11/2 | 130 |
| 4063C15 | 15 | 19.54 | 11/2 | 51/4 | 7 | 6 | 192 | 4063A15 | 11/2 | 148 |
| 4063C16 | 16 | 20.83 | 11/2 | 51/2 | 8 | 61/4 | 230 | 4063A16 | 11/2 | 168 |
| 4063C18 | 18 | 23.40 | 11/2 | 51/2 | 8 | 61/4 | 275 | 4063A18 | 11/2 | 213 |
| 4063C20 | 20 | 25.97 | 11/2 | 51/2 | 8 | 61/4 | 300 | 4063A20 | 11/2 | 263 |
| 4063C21 | 21 | 27.26 | 11/2 | 51/2 | 8 | 61/4 | 319 | 4063A21 | 11/2 | 289 |
| 4063C24 | 24 | 31.12 | 11/2 | 51/2 | 8 | 61/4 | 387 | 4063A24 | 11/2 | 377 |
| 4063C25 | 25 | 33.42 | 11/2 | 6 | 9 | 61/4 | 426 | 4063A25 | 11/2 | 409 |
| 4063C28 | 28 | 36.29 | 11/2 | 6 | 9 | 61/4 | 494 | 4063A28 | 11/2 | 479 |
| 4063C30 | 30 | 38.87 | 11/2 | 7 | 10 | 63/4 | 583 | 4063A30 | 11/2 | 498 |
| 4063C35 | 35 | 45.33 | 11/2 | 7 | 10 | 63/4 | 729 | 4063A35 | 11/2 | 620 |
| 4063C40 | 40 | 51.78 | 11/2 | 71/2 | 11 | 73/4 | 932 | 4063A40 | 11/2 | 721 |
| 4063C48 | 48 | 62.12 | 11/2 | 71/2 | 11 | 73/4 | 1078 | 4063A48 | 11/2 | 867 |
Leegilõikega ketirattad
4500 Leegiga lõigatud ketirattad kettidele
RO625-B635-X635-1350-450SX-450SXX-IS4522-1340RX
LXS4522M
4500 plaadi paksus 13/4'' Rulli läbimõõt 21/4''
| Kataloogi nr. | Z | P.D | Varu puu | Max Bore | Rummu läbimõõt | A1 | kaal naela | Kataloogi nr. | Varu puu | kaal naela |
| 4500C 10 | 10 | 14.56 | 11/2 | 4 | 61/2 | 5 | 111 | 4500A10 | 11/2 | 87 |
| 4500C 12 | 12 | 17.39 | 11/2 | 4 | 61/2 | 5 | 148 | 4500A12 | 11/2 | 119 |
| 4500C 14 | 14 | 20.22 | 11/2 | 4 | 61/2 | 5 | 188 | 4500A14 | 11/2 | 159 |
| 4500C 30 | 30 | 43.05 | 11/2 | 53/8 | 71/2 | 57/8 | 592 | 4500A30 | 11/2 | 542 |
| 4500C 36 | 36 | 51.63 | 11/2 | 53/8 | 71/2 | 57/8 | 764 | 4500A36 | 11/2 | 715 |
| 4500C 42 | 42 | 60.22 | 11/2 | 61/2 | 91/2 | 71/4 | 884 | 4500A42 | 11/2 | 776 |
| 4500C 48 | 48 | 68.81 | 11/2 | 71/2 | 11 | 73/4 | 1174 | 4500A48 | 11/2 | 963 |
5000 Leegiga lõigatud ketirattad kettidele
RX1207-RO1205-A1302-JS5031-1510XX-1602A-1602AA
LXS1245-SS124D-SS124DP-IS1242-IS1425
5000 plaadi paksus 21/4'' Rulli läbimõõt 21/2''
| Kataloogi nr. | Z | P.D | Varu puu | Max Bore | Rummu läbimõõt | A1 | kaal naela | Kataloogi nr. | Varu puu | kaal naela |
| 5000C10 | 10 | 16.18 | 11/2 | 41/2 | 61/2 | 51/2 | 160 | 5000A10 | 11/2 | 131 |
| 5000C12 | 12 | 19.32 | 11/2 | 41/2 | 61/2 | 51/2 | 215 | 5000A12 | 11/2 | 187 |
| 5000C14 | 14 | 22.47 | 11/2 | 53/8 | 71/2 | 57/8 | 298 | 5000A14 | 11/2 | 254 |
| 5000C30 | 30 | 47.84 | 11/2 | 6 | 9 | 63/4 | 809 | 5000A30 | 11/2 | 730 |
| 5000C36 | 36 | 57.37 | 11/2 | 7 | 10 | 81/2 | 1161 | 5000A36 | 11/2 | 1025 |
| 5000C42 | 42 | 66.91 | 11/2 | 7 | 10 | 81/2 | 1245 | 5000A42 | 11/2 | 1109 |
| 5000C48 | 48 | 76.45 | 11/2 | 71/2 | 11 | 101/4 | 2005 | 5000A48 | 11/2 | 1794 |
Leegilõikega ketirattad
2609 Leegiga lõigatud ketirattad kettidele
78-H74-75-H75-H78-H78LR-H78RT-H78SR-88-188-S188
S78-R588-RR588-R778-998-IS880-81X-IS882-US881
LXS881-LXS886-LXS887-LXS882-488-XS578-SS188-C188
US278R-US882-578R-588R
2609 plaadi paksus 7/8'' rulli läbimõõt 7/8''
| Kataloogi nr. | Z | P.D | Varu puu | Max Bore | Rummu läbimõõt | A1 | kaal naela | Kataloogi nr. | Varu puu | kaal naela |
| 2609C08 | 8 | 6.82 | 15/16 | 31/4 | 43/4 | 31/8 | 21 | 2609A08 | 15/16 | 9.0 |
| 2609C09 | 9 | 7.63 | 11/4 | 37/16 | 51/4 | 37/8 | 29 | 2609A09 | 11/4 | 11.3 |
| 2609C10 | 10 | 8.44 | 11/4 | 37/16 | 51/4 | 37/8 | 31 | 2609A10 | 11/4 | 13.9 |
| 2609C11 | 11 | 9.26 | 11/4 | 37/16 | 51/4 | 37/8 | 34 | 2609A11 | 11/4 | 16.7 |
| 2609C12 | 12 | 10.08 | 11/4 | 37/16 | 51/4 | 37/8 | 37 | 2609A12 | 11/4 | 19.8 |
| 2609C13 | 13 | 10.90 | 11/4 | 33/4 | 51/2 | 41/2 | 46 | 2609A13 | 11/4 | 23.0 |
| 2609C14 | 14 | 11.72 | 11/4 | 33/4 | 51/2 | 41/2 | 49 | 2609A14 | 11/4 | 27.0 |
| 2609C15 | 15 | 12.55 | 11/2 | 33/4 | 51/2 | 41/2 | 53 | 2609A15 | 11/2 | 30.0 |
| 2609C17 | 17 | 14.20 | 11/2 | 33/4 | 51/2 | 41/2 | 62 | 2609A17 | 11/2 | 39.0 |
| 2609C19 | 19 | 15.85 | 11/2 | 41/2 | 61/2 | 53/8 | 90 | 2609A19 | 11/2 | 50.0 |
| 2609C21 | 21 | 17.51 | 11/2 | 41/2 | 61/2 | 53/8 | 101 | 2609A21 | 11/2 | 61.0 |
| 2609C24 | 24 | 19.99 | 11/2 | 41/2 | 61/2 | 53/8 | 119 | 2609A24 | 11/2 | 79.0 |
| 2609C25 | 25 | 20.82 | 11/2 | 41/2 | 61/2 | 53/8 | 124 | 2609A25 | 11/2 | 84.0 |
| 2609C28 | 28 | 23.31 | 11/2 | 41/2 | 61/2 | 53/8 | 132 | 2609A28 | 11/2 | 105.0 |
| 2609C30 | 30 | 24.96 | 11/2 | 41/2 | 61/2 | 53/8 | 150 | 2609A30 | 11/2 | 123.0 |
| 2609C35 | 35 | 29.11 | 11/2 | 41/2 | 61/2 | 53/8 | 170 | 2609A35 | 11/2 | 166 |
| 2609C40 | 40 | 33.25 | 11/2 | 415/16 | 71/4 | 63/4 | 226 | 2609A40 | 11/2 | 216.0 |
| 2609C42 | 42 | 34.91 | 11/2 | 415/16 | 71/4 | 63/4 | 240 | 2609A42 | 11/2 | 240.0 |
| 2609C46 | 46 | 38.31 | 11/2 | 415/16 | 71/4 | 63/4 | 258 | 2609A46 | 11/2 | 286.0 |
| 2609C54 | 54 | 44.87 | 11/2 | 415/16 | 71/4 | 63/4 | 368 | 2609A54 | 11/2 | 302.0 |
| 2609C60 | 60 | 49.85 | 11/2 | 415/16 | 71/4 | 63/4 | 388 | 2609A60 | 11/2 | 322.0 |
Leegilõikega ketirattad
3075 Leegiga lõigatud ketirattad kettidele
H82-WH82-WR82-103-131-S131-WS82-WS82H-SS131-527R
527RX-C9103-6131-4103-C131-382
B3075 plaadi paksus 11/8'' Rulli läbimõõt 17/32''
| Kataloogi nr. | Z | P.D | Varu puu | Max Bore | Rummu läbimõõt | A1 | kaal naela | Kataloogi nr. | Varu puu | kaal naela |
| B3075C07 | 7 | 7.09 | 13/16 | 215/16 | 41/2 | 37/8 | 24 | B3075A07 | 13/16 | 12.6 |
| B3075C08 | 8 | 8.04 | 11/4 | 33/4 | 51/4 | 41/8 | 34 | B3075A08 | 11/4 | 16 |
| B3075C09 | 9 | 8.99 | 11/4 | 33/4 | 51/4 | 41/8 | 38 | B3075A09 | 11/4 | 20 |
| B3075C10 | 10 | 9.95 | 11/4 | 33/4 | 51/4 | 41/8 | 43 | B3075A10 | 11/4 | 25 |
| B3075C11 | 11 | 10.91 | 11/4 | 315/16 | 53/4 | 43/8 | 54 | B3075A11 | 11/4 | 30 |
| B3075C12 | 12 | 11.88 | 11/4 | 315/16 | 53/4 | 43/8 | 60 | B3075A12 | 11/4 | 36 |
| B3075C13 | 13 | 12.85 | 11/4 | 315/16 | 53/4 | 43/8 | 66 | B3075A13 | 11/4 | 42 |
| B3075C14 | 14 | 13.82 | 11/4 | 315/16 | 53/4 | 43/8 | 72 | B3075A14 | 11/4 | 48 |
| B3075C15 | 15 | 14.79 | 11/2 | 41/2 | 61/2 | 55/8 | 94 | B3075A15 | 11/2 | 54 |
| B3075C16 | 16 | 15.76 | 11/2 | 41/2 | 61/2 | 55/8 | 102 | B3075A16 | 11/2 | 62 |
| B3075C17 | 17 | 16.73 | 11/2 | 41/2 | 61/2 | 55/8 | 110 | B3075A17 | 11/2 | 70 |
| B3075C18 | 18 | 17.71 | 11/2 | 41/2 | 61/2 | 55/8 | 119 | B3075A18 | 11/2 | 79 |
Leegilõikega ketirattad
4000 Leegiga lõigatud ketirattad kettidele
H124-W124-WS124-WR124-WH124
4000 plaadi paksus 11/2'' Rulli läbimõõt 11/2''
| Kataloogi nr. | Z | P.D | Varu puu | Max Bore | Rummu läbimõõt | A1 | kaal naela | Kataloogi nr. | Varu puu | kaal naela |
| 4000C06 | 6 | 8.00 | 15/16 | 31/4 | 43/4 | 45/8 | 36 | 4000A06 | 15/16 | 21 |
| 4000C07 | 7 | 9.22 | 1 | 315/16 | 53/4 | 43/4 | 52 | 4000A07 | 1 | 28 |
| 4000C08 | 8 | 10.45 | 1 | 315/16 | 53/4 | 43/4 | 61 | 4000A08 | 1 | 37 |
| 4000C09 | 9 | 11.70 | 1 | 315/16 | 53/4 | 43/4 | 70 | 4000A09 | 1 | 46 |
| 4000C10 | 10 | 12.94 | 1 | 315/16 | 53/4 | 43/4 | 79 | 4000A10 | 1 | 55 |
| 4000C11 | 11 | 14.20 | 11/2 | 41/4 | 61/4 | 43/4 | 95 | 4000A11 | 11/2 | 68 |
| 4000C12 | 12 | 15.45 | 11/2 | 41/4 | 61/4 | 43/4 | 107 | 4000A12 | 11/2 | 80 |
| 4000C13 | 13 | 16.72 | 11/2 | 41/4 | 61/4 | 43/4 | 120 | 4000A13 | 11/2 | 93 |
| 4000C14 | 14 | 17.98 | 11/2 | 41/4 | 61/4 | 43/4 | 135 | 4000A14 | 11/2 | 108 |
| 4000C15 | 15 | 19.24 | 11/2 | 43/8 | 63/4 | 6 | 168 | 4000A15 | 11/2 | 124 |
| 4000C16 | 16 | 20.50 | 11/2 | 43/8 | 63/4 | 6 | 185 | 4000A16 | 11/2 | 141 |
6050 Leegiga lõigatud ketirattad kettidele
C132-A132-A132WS-WS132-C132M-C132W-SX150-SXA150
150X-6150-W157-WH157-WR157
6050 plaadi paksus 23/4'' Rulli läbimõõt 123/32''
| Kataloogi nr. | Z | P.D | Varu puu | Max Bore | Rummu läbimõõt | A1 | kaal naela | Kataloogi nr. | Varu puu | kaal naela |
| 6050C06 | 6 | 12.10 | 11/2 | 41/2 | 61/2 | 6 | 119 | 6050A06 | 11/2 | 90 |
| 6050C07 | 7 | 13.95 | 11/2 | 41/2 | 61/2 | 6 | 149 | 6050A07 | 11/2 | 120 |
| 6050C08 | 8 | 15.81 | 11/2 | 41/2 | 61/2 | 6 | 182 | 6050A08 | 11/2 | 153 |
| 6050C09 | 9 | 17.69 | 11/2 | 53/8 | 71/2 | 63/8 | 236 | 6050A09 | 11/2 | 192 |
| 6050C10 | 10 | 19.58 | 11/2 | 53/8 | 71/2 | 63/8 | 278 | 6050A10 | 11/2 | 235 |
| 6050C11 | 11 | 21.47 | 11/2 | 53/8 | 71/2 | 63/8 | 326 | 6050A11 | 11/2 | 283 |
| 6050C12 | 12 | 23.38 | 11/2 | 53/8 | 71/2 | 63/8 | 378 | 6050A12 | 11/2 | 334 |
Kuum tags: leeklõigatud ketirattad, Hiina leeklõigatud ketirataste tootjad, tarnijad, tehas
